BMW N62 Valve Seal Tool Rental

Fix your BMW
valve seals.
No head removal.

The AGA BMW N62 valve seal tool lets you replace your valve seals without removing the engine, cams, heads or timing. Rent it from Phil in Lichfield for 7 days and fix your BMW at a fraction of the garage cost.

Rent the tool kit → Try Forte Seal Conditioner first

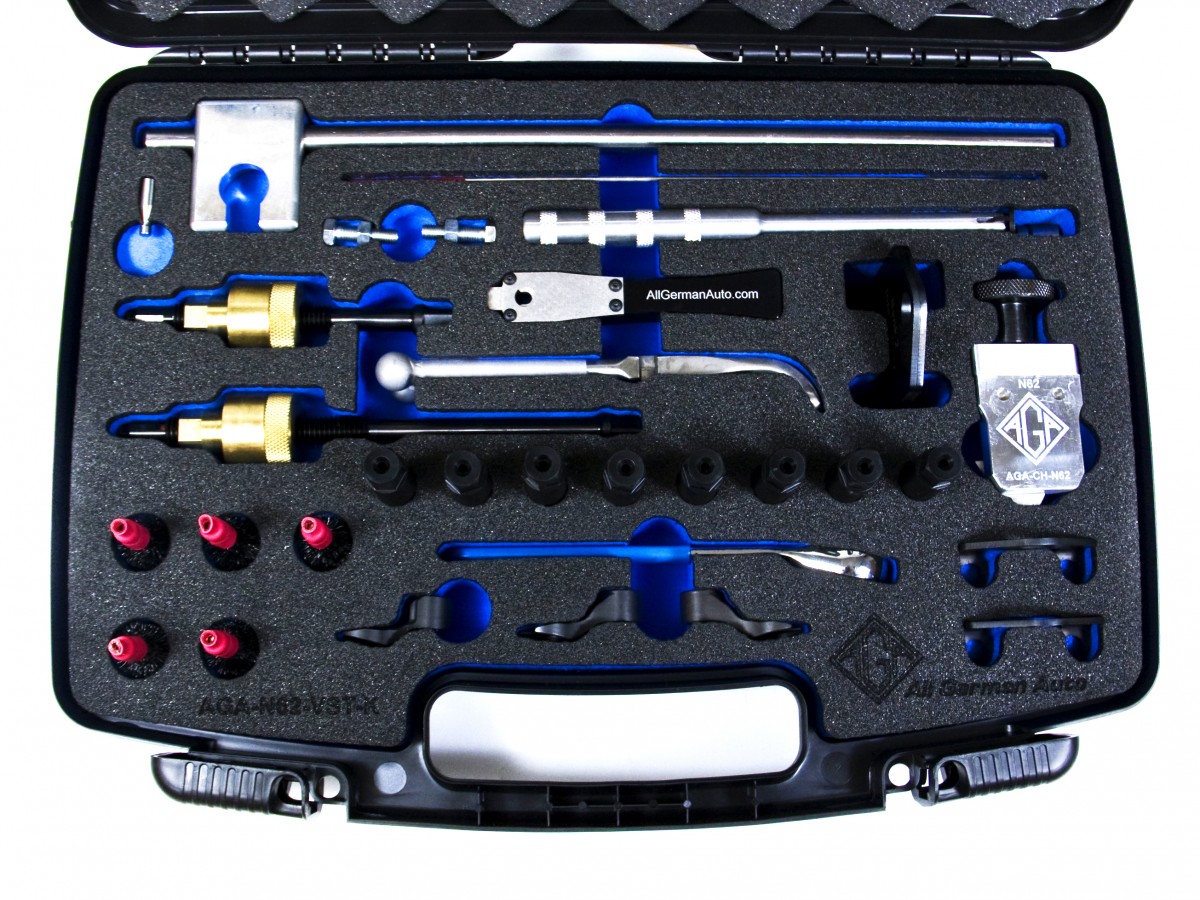

AGA BMW N62 valve seal replacement tool kit — the complete specialist tool set for replacing valve seals without removing cylinder heads
Tool rental
£220
7 days · Free UK delivery · Fix it yourself
Rent the AGA tool kit →
Is this your BMW?
💨
Blue smoke on startup
A puff of blue smoke when you first start the engine — particularly after it has been sitting overnight — is the classic sign of worn valve stem seals.
🚗
Smoke on the overrun / lifting off
Blue smoke when you come off the throttle at speed — slowing from a fast road or motorway. High manifold vacuum on the overrun draws oil past hardened valve seals. The most definitive valve seal sign.
🛢️
Higher than normal oil consumption
Burning oil past leaking valve seals causes oil consumption to increase — needing top-ups between services is a warning sign.
💷
Garage quoted thousands
The conventional valve seal repair requires removing the cylinder heads — a huge labour job. That's why garages quote so much. The AGA tool eliminates the need for any of that.
Understanding the problem

What Causes BMW N62 Valve Seal Failure?

The BMW N62 V8 is a magnificent engine. But its valve stem seals are a known weak point — they harden and shrink with age and heat, allowing oil to leak past them into the combustion chamber.

The valve stem seals are small rubber components that sit at the top of each valve guide and prevent engine oil from flowing down into the combustion chamber. On the BMW N62 V8 — fitted to the 5, 6 and 7 Series and X5 from 2002-2010 — these seals harden and shrink as the engine ages.

When the seals lose their seal, oil leaks past them into the combustion chamber where it burns — producing the characteristic blue smoke. The conventional repair requires removing the cylinder heads to access the valve seals. On a V8 engine that is an enormous job costing thousands in labour alone.

The AGA tool kit changes everything. By using compressed air to hold the valves in place, the seals can be replaced with the camshafts and heads in situ — removing only the rocker covers. A job that was once a major engine rebuild becomes a weekend DIY project.

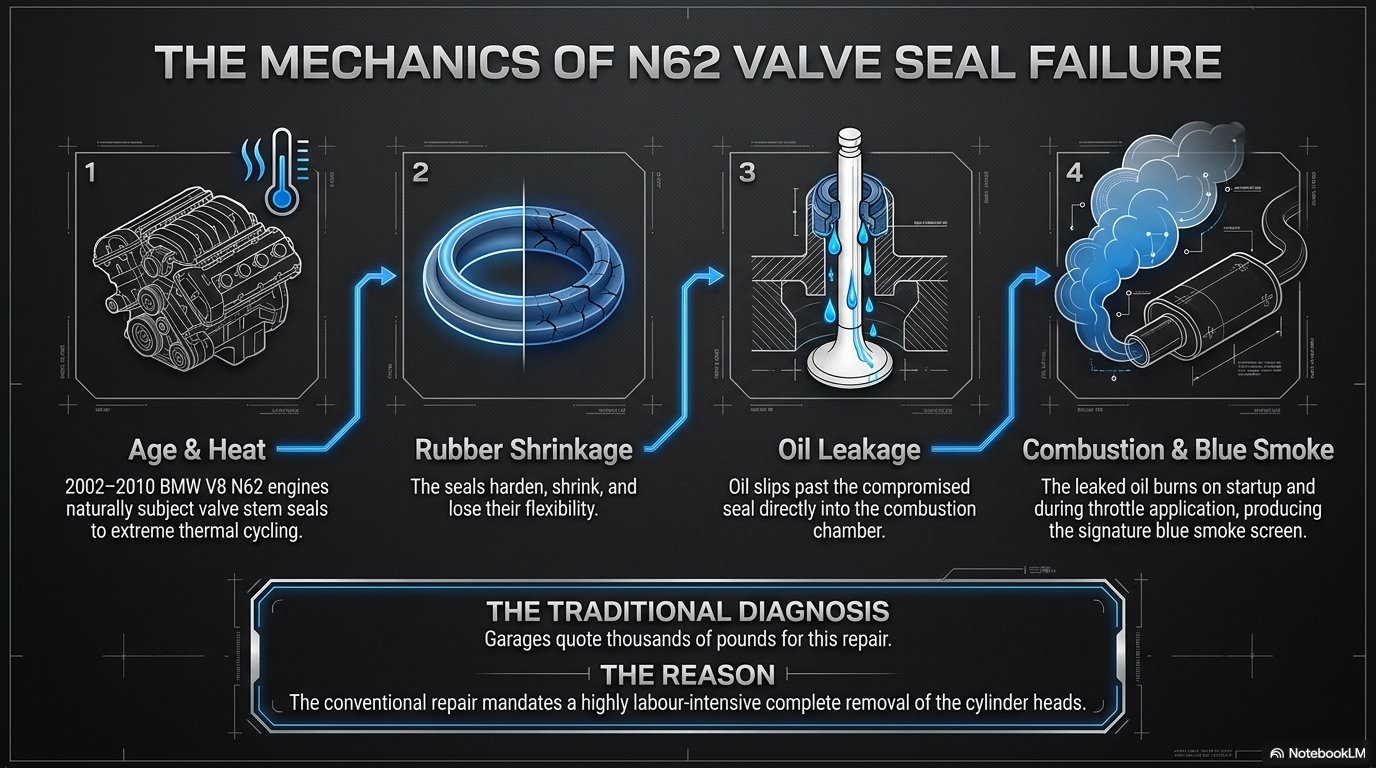

The mechanics of BMW N62 valve seal failure — showing how the valve stem seals harden and shrink with age causing oil to leak into the combustion chamber producing blue exhaust smoke

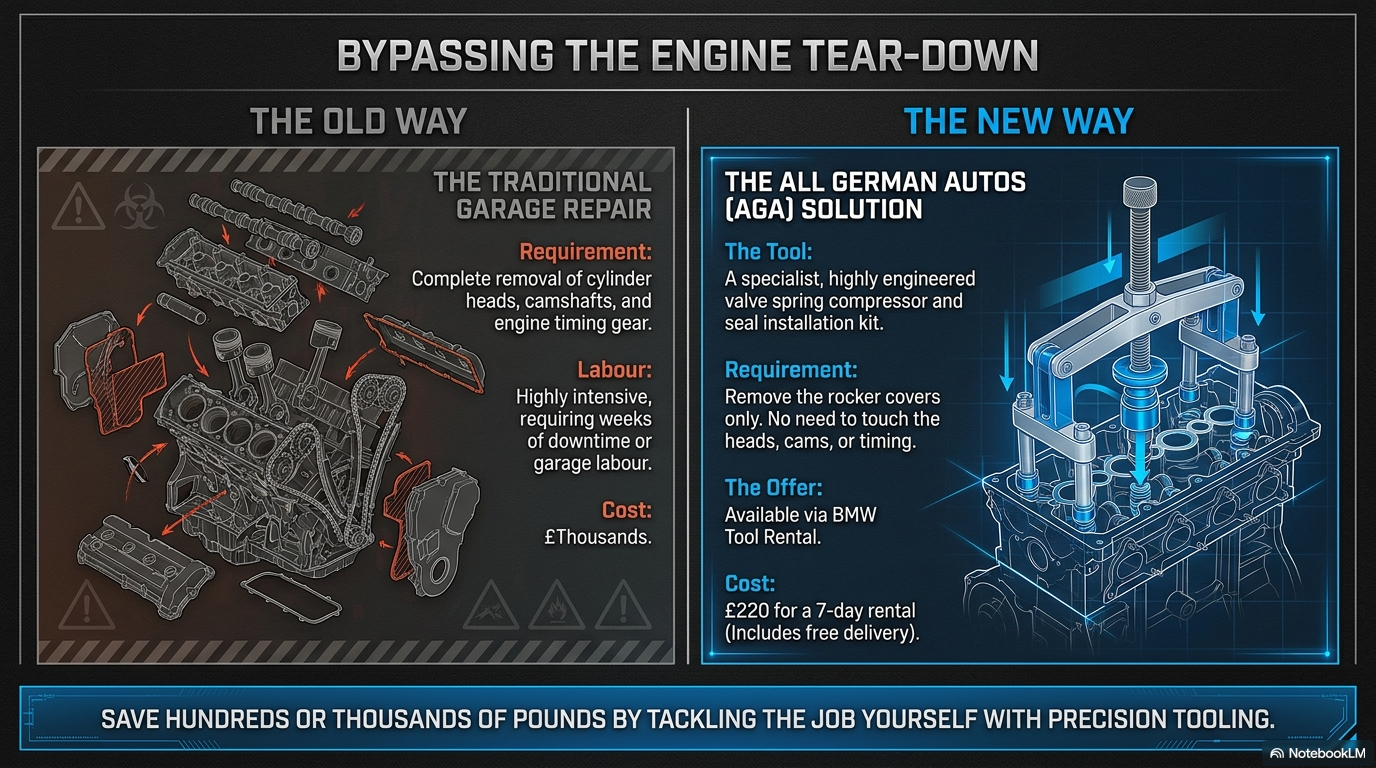

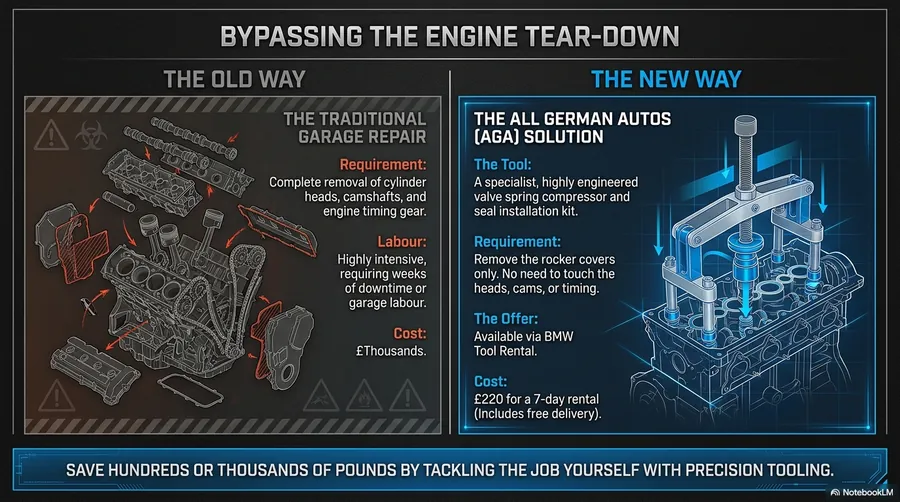

Bypassing the engine tear-down — showing how the AGA valve seal replacement tool kit allows BMW N62 valve seals to be replaced without removing the cylinder heads, cams or timing
The AGA solution

Fix Your Valve Seals Without Removing the Heads

The AGA BMW N62 valve seal tool kit was specifically designed to make valve seal replacement possible without a full engine teardown — saving days of labour and thousands of pounds.

The AGA tool works by using compressed air fed through the spark plug hole to maintain cylinder pressure and hold the valves closed while the seals are being changed. With the valves held in place by air pressure the camshafts and heads do not need to be removed.

The only requirement is removing the rocker covers — a straightforward job on the N62. Once the rocker covers are off, the AGA tool kit provides everything needed to compress each valve spring, remove the old seal and fit the new one.

  • ✓
    No engine removal requiredThe engine stays in the car throughout the entire job
  • ✓
    No cam or head removalOnly the rocker covers need to come off
  • ✓
    No timing chain disturbanceThe timing is never touched — significantly reducing risk
  • ✓
    Anyone can do itIf you can remove rocker covers you can use this tool kit
The diagnosis

The Valve Seal Nightmare — and the Solution

Thousands in garage quotes. Weeks without your car. The fear of an engine you can no longer afford to fix. The AGA tool changes the equation completely.

BMW N62 valve seal failure is one of the most dreaded diagnoses a BMW owner can receive — not because the fault is catastrophic, but because of what fixing it the conventional way entails. Head removal on a V8 is a multi-day job with significant labour costs before a single seal has been touched.

The AGA tool kit reframes the entire problem. Instead of a workshop job measured in days and thousands of pounds, it becomes a careful weekend project that anyone with basic mechanical competence can undertake.

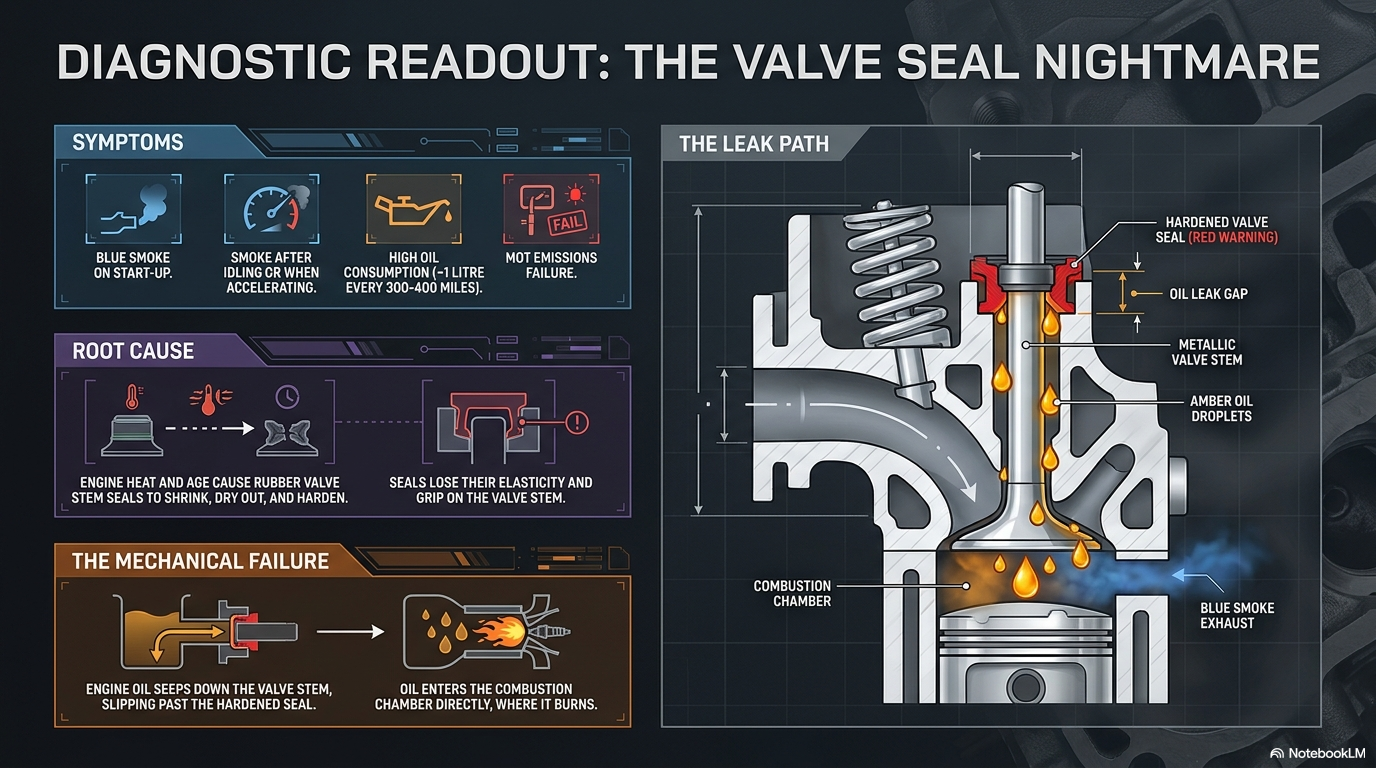

Diagnostic readout the valve seal nightmare — showing the problem BMW N62 owners face with valve seal failure and the cost of conventional garage repair versus the AGA tool kit approach
Diagnostic codes

What Fault Codes Point to
BMW Valve Seal Failure?

Worn valve stem seals rarely throw a code on their own — but the oil they let burn does. If your N62 is logging any of these alongside blue smoke and rising oil use, hardened valve seals are a prime suspect, and the AGA tool kit lets you fix them yourself without pulling the heads.

  • P0420
    P0430
    Catalyst Efficiency Below Threshold (Bank 1 & Bank 2)The N62's signature failure. Oil burning past worn valve seals cooks both catalytic converters, dropping their efficiency below what the ECU expects — one code per bank on the V8. Replacing the seals removes the source before it destroys the cats. Secondary code.
  • P0301
    –P0308
    Cylinder 1–8 Misfire DetectedOil pooling on a cylinder fouls the spark plug and triggers a misfire on that exact cylinder (P0301 = cylinder 1, and so on). On the N62 this often appears after the car has sat overnight. New valve seals stop the oil reaching the plug. Secondary code.
  • P0300
    Random / Multiple Cylinder MisfireOil reaching several cylinders shows as a random misfire rather than one specific cylinder. Common on higher-mileage N62s with widespread seal wear. Secondary code.
  • BMW
    2A82 /
    2A87
    BMW-Specific Rough Running & Misfire CodesRead via INPA or ISTA, BMW's own fault memory often logs rough-running and cylinder-specific misfire codes (e.g. 2A82, 2A87) that map to the same valve-seal oil-burning problem. Secondary code.

Seeing these on your N62? Send Phil your codes and symptoms — he'll give you an honest read on whether it's valve seals, and whether to rent the tool for the mechanical fix or try Forte Seal Conditioner first.

Compatible vehicles

Is the AGA Tool Compatible With Your BMW?

2002–2005
BMW 745i & 745iL
E65 & E66
2006–2008
BMW 750i & 750iL
E65 & E66
2004–2006
BMW X5 4.4i & 4.8is
E53
2007–2010
BMW X5 4.8i
E70
2004–2005
BMW 545i
E60
2006–2010
BMW 550i
E60 & E61
2004–2005
BMW 645Ci
E63 & E64
2006–2010
BMW 650i
E63 & E64
2002–2005
Range Rover V8
Not sure?
Contact Phil — he'll tell you if the tool is right for your engine

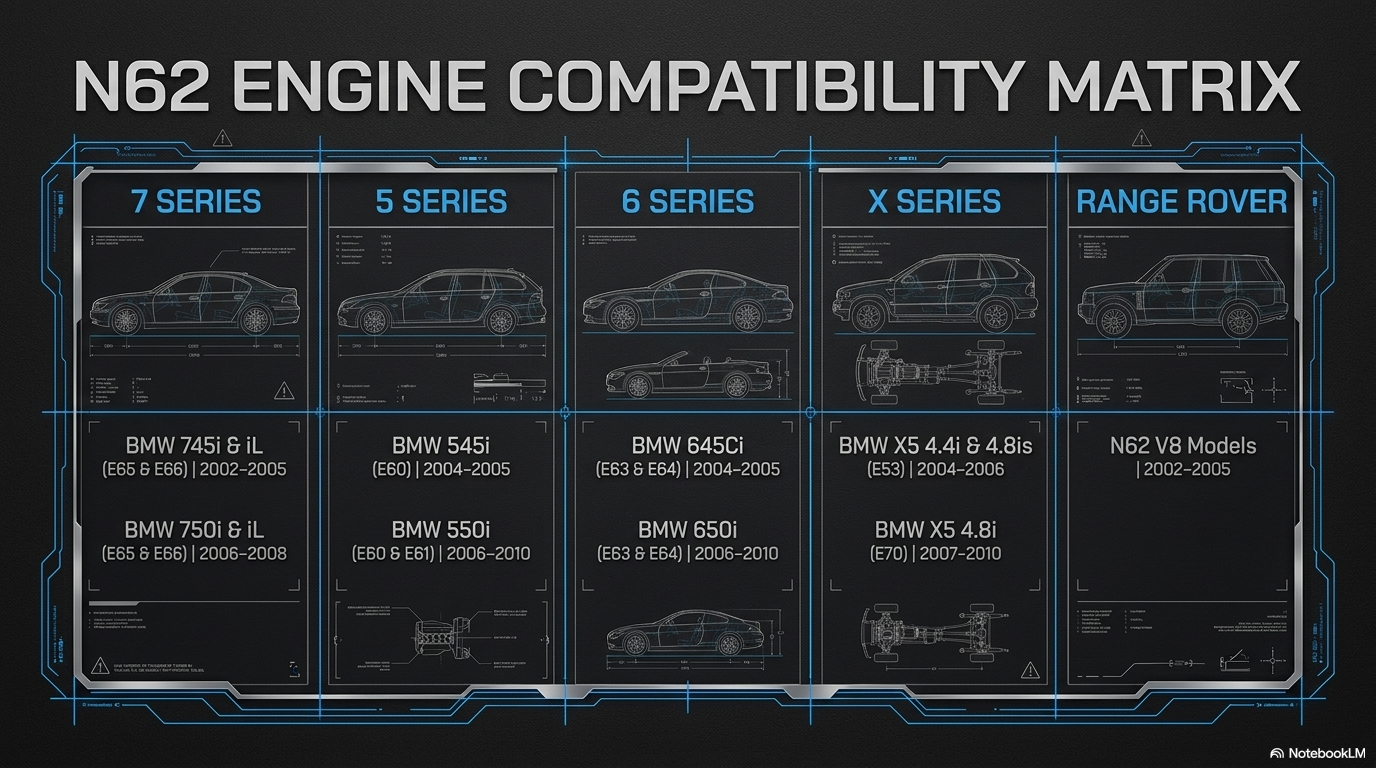

BMW N62 engine compatibility matrix — showing all compatible BMW models including 7 Series E65 E66, 5 Series E60 E61, 6 Series E63 E64, X5 E53 E70 and Range Rover
See it in action

How To Replace Valve Seals Using the AGA Tool Kit

Watch the full walkthrough video showing exactly how the AGA BMW N62 valve seal tool kit is used — from removing the rocker covers through to fitting the new seals. If you can follow this, you can do this job.

Any questions after watching — contact Phil directly. He has done this job himself and will walk you through anything you are unsure about before you rent.

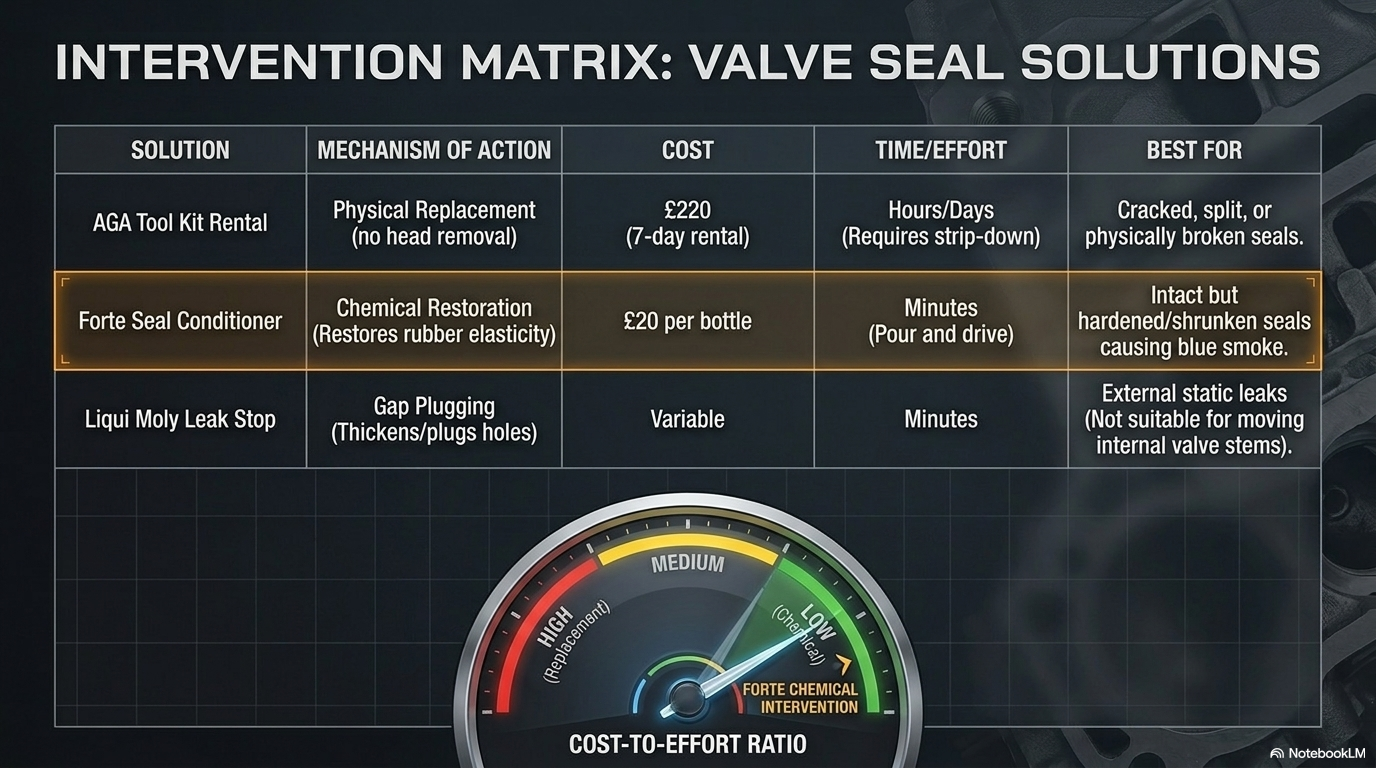

Intervention matrix valve seal solutions — showing the decision matrix between the AGA tool kit mechanical approach and the Forte Seal Conditioner chemical approach depending on the severity and nature of the valve seal problem
Which approach is right for you?

Tool Kit or Forte Seal Conditioner — Which Do You Need?

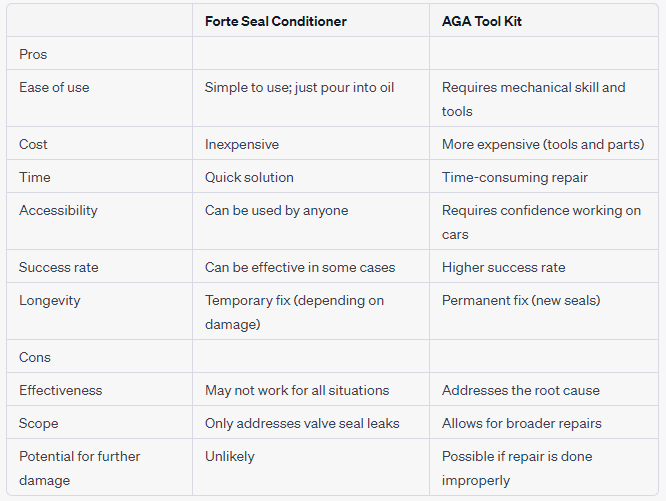

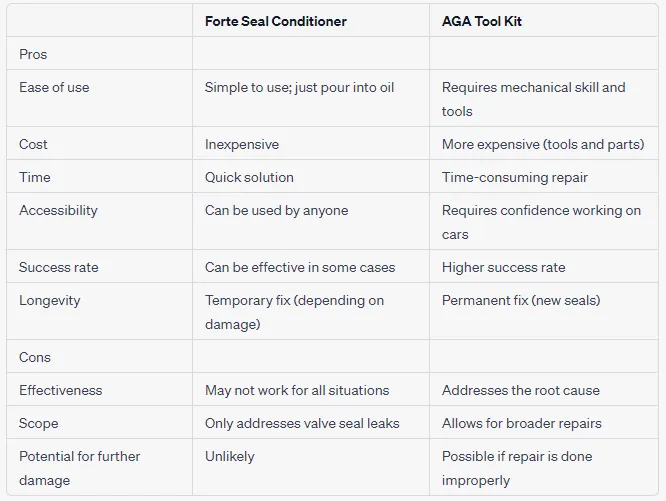

There are two ways to address BMW N62 valve seal problems. The right one depends on the severity of your issue and what you're prepared to do about it.

  • ✓
    AGA tool kit — mechanical replacementPermanent fix. Works on all seal conditions including physically damaged seals. Requires basic mechanical ability and a weekend. £220 rental.
  • ✓
    Forte Seal Conditioner — chemical restorationNo tools required. Around 80% success rate where seals are hardened but not physically broken. Add to existing engine oil and drive. £18.00.
  • →
    Not sure which you need?Contact Phil. He'll give you an honest assessment based on your symptoms — including telling you if Forte Seal Conditioner is worth trying first before committing to the tool rental.
The honest alternative

Forte Seal Conditioner — Phil Tested It Himself

I had every reason to want it to fail. I rent the tool. But I soaked valve seals in it, photographed the results, and the rubber visibly swelled back. So I started selling it.

Phil is in the unusual position of selling a product that competes directly with his own tool rental business. He sells Forte Seal Conditioner because it works — around 80% success rate where seals have hardened and shrunk but are not physically cracked or broken.

For £18.00 it is always worth trying first. If it works you have saved the cost of the tool rental and a weekend's work. If it doesn't, the tool rental is still there. Phil will tell you honestly which approach he thinks is more likely to work for your situation.

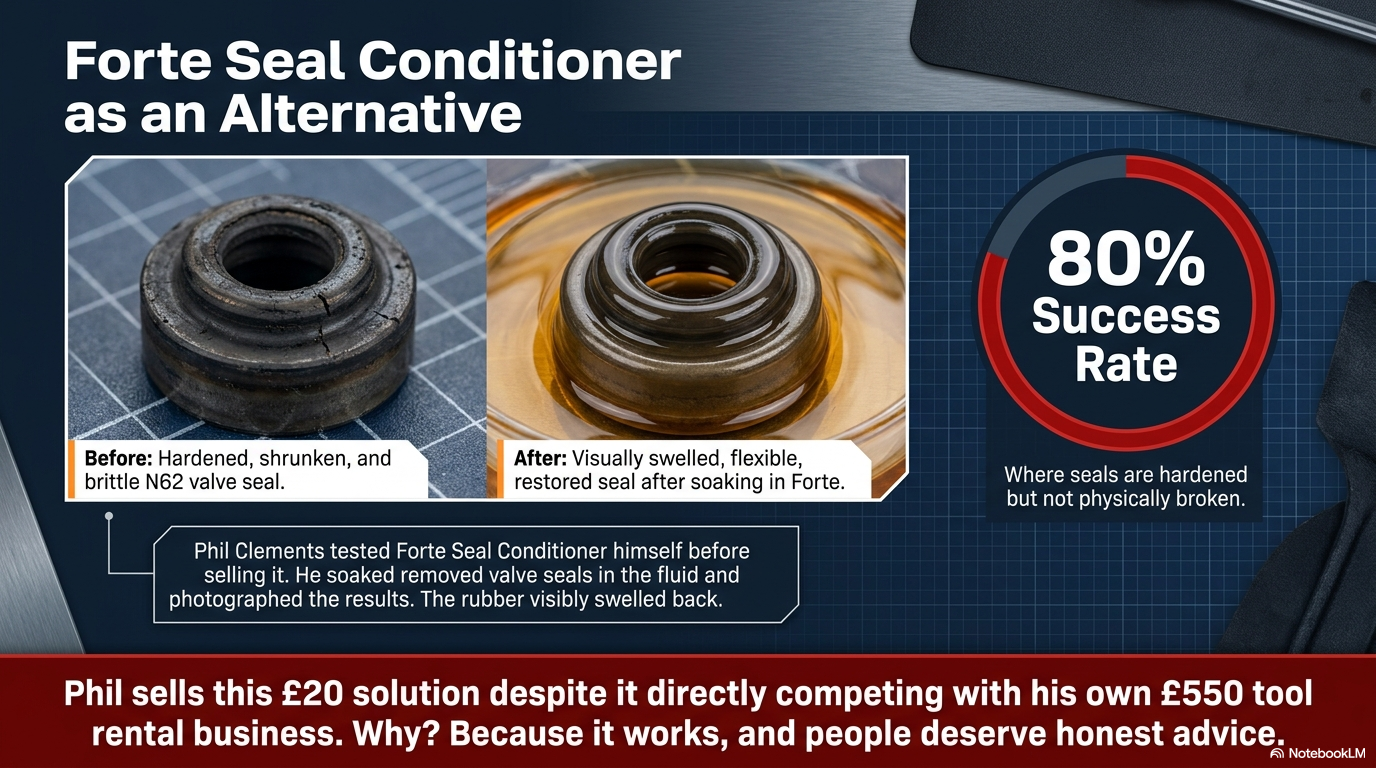

Forte Seal Conditioner as an alternative to valve seal replacement — showing how the chemical treatment restores hardened valve stem seals without any mechanical work

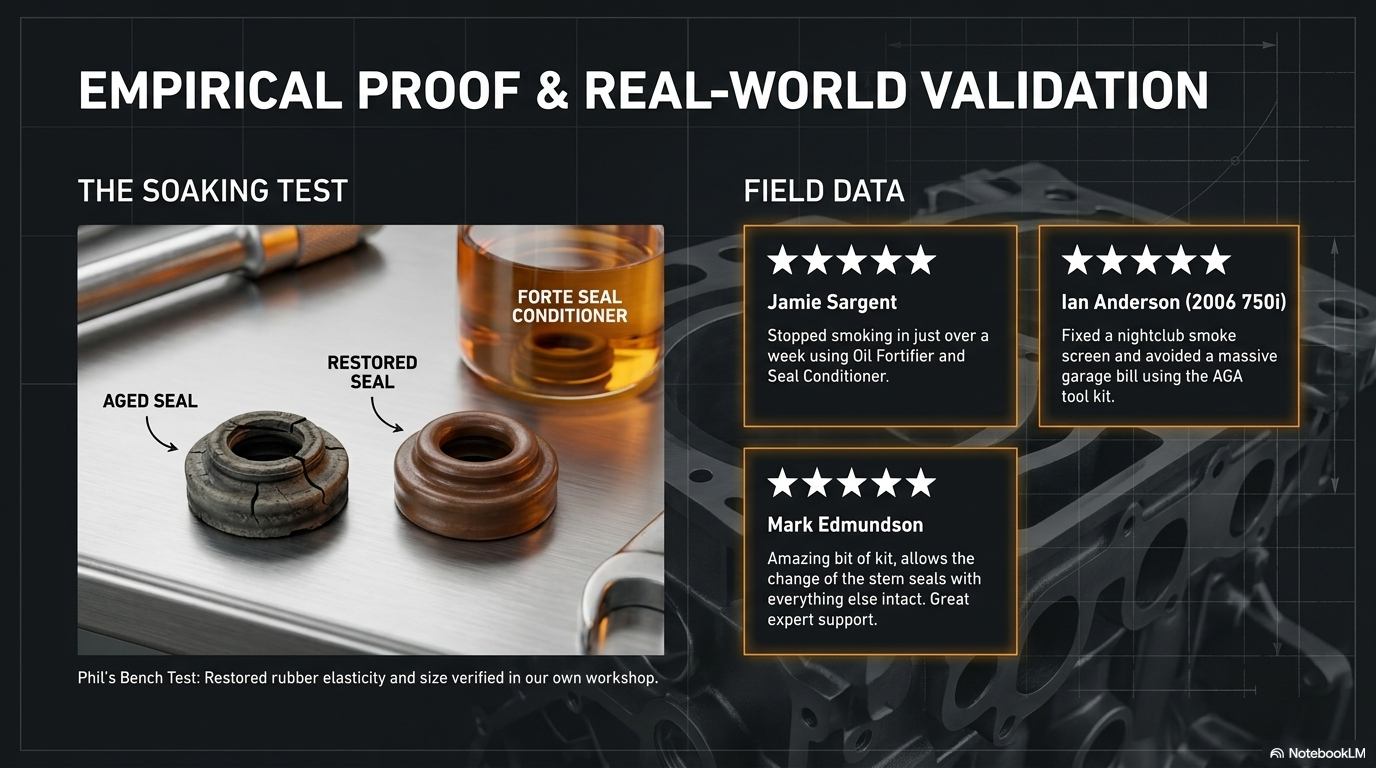

Empirical proof and real world validation — showing Phil's documented test results of Forte Seal Conditioner on BMW valve seals, with photographic evidence of the seals swelling back towards their original size
The evidence

Real World Proof — Not Just Marketing Claims

Phil photographed the valve seals before and after soaking them in Forte Seal Conditioner. The results are on his Facebook page. The rubber visibly swelled back towards its original size.

This is not a marketing claim — it is a documented physical test carried out by the person selling the product, who had every commercial reason to want it to fail. Phil's Facebook page shows the before and after photographs of the valve seals.

The honest caveat: it works where seals have hardened and shrunk with age. It cannot restore seals that are physically cracked or broken — those need mechanical replacement with the AGA tool kit. Phil will tell you which situation you are likely in based on your symptoms.

Do the job properly

The Complete Top End Rebuild Package

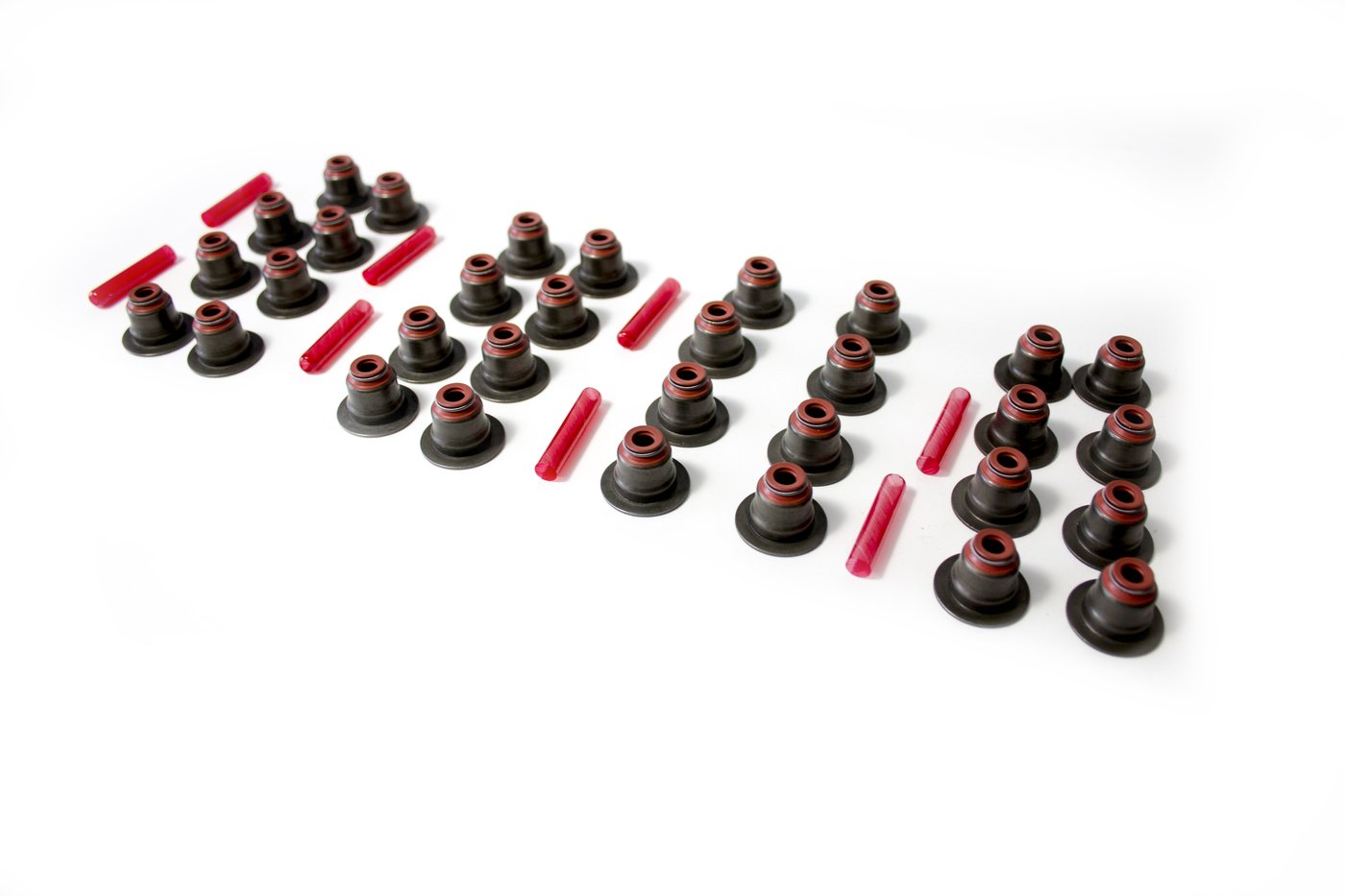

If you are going in to replace the valve seals, it makes sense to replace every seal and gasket in the top end at the same time. BMW Tool Rental supplies the complete Elring kit to do the job properly.

×32
Elring Valve Seals
×2
Elring Rocker Cover Seal Kits
×2
Cam Chain Cover Oil Seals
×2
Eccentric Sensor Seals
×8
Spark Plug Tubes

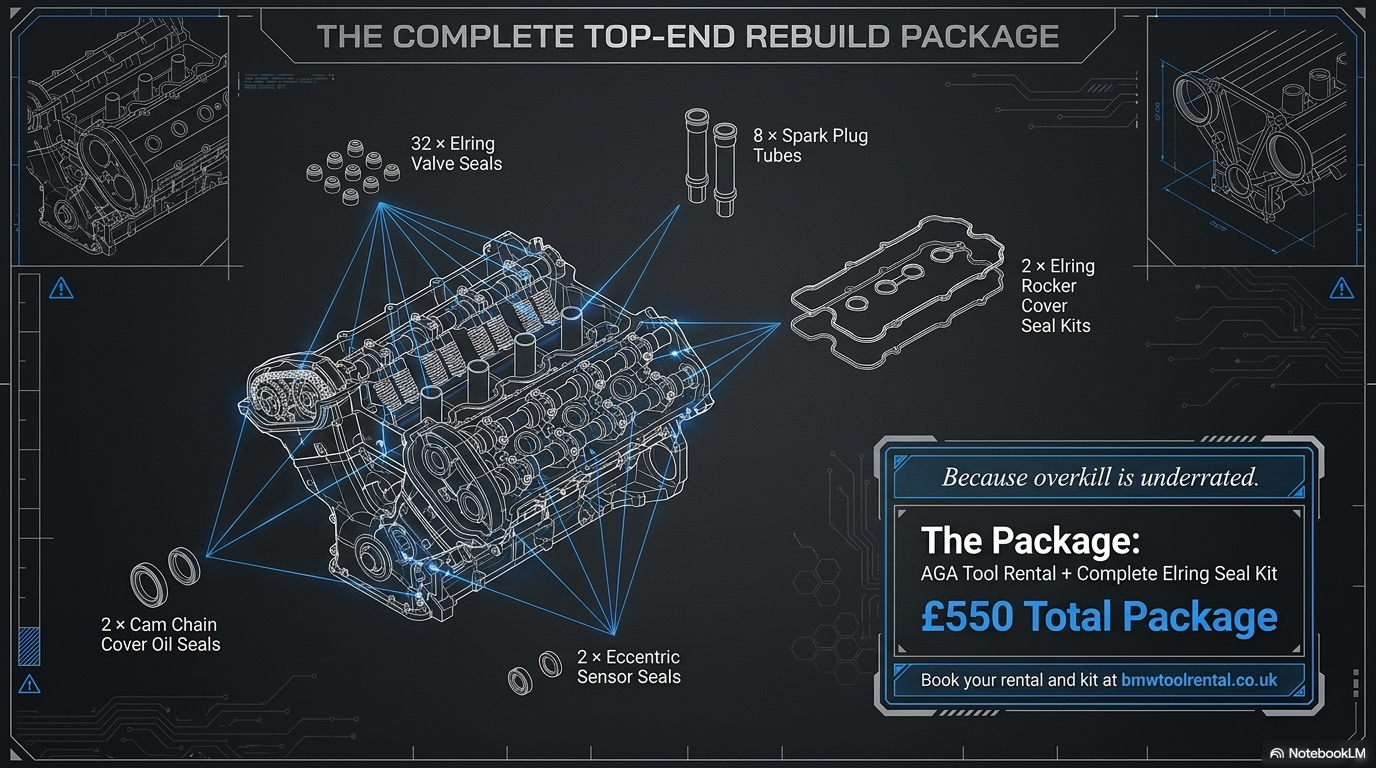

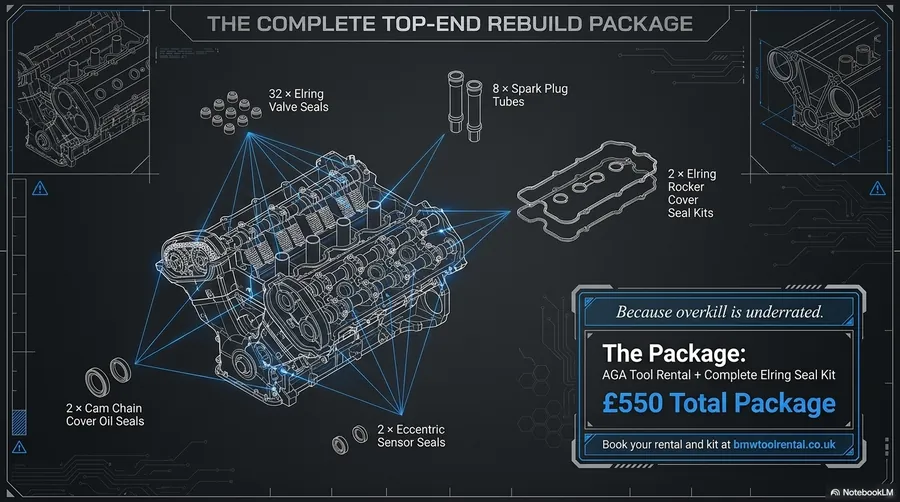

The complete top end rebuild package — showing all the Elring seals and gaskets included in the complete BMW N62 valve seal replacement kit including valve seals, rocker cover seal kits, cam chain cover oil seals, eccentric sensor seals and spark plug tubes
The complete approach

The Valve Seal Treatment Protocol

Whether you choose the chemical route or the mechanical route — or both — there is a correct protocol for getting the best possible result.

For the chemical approach: add Forte Oil Fortifier first and drive for one day to let it mix through. Then add Forte Seal Conditioner — one bottle for engines under 2.0 litres, two bottles for engines over 2.0 litres. Drive normally for 2-8 weeks and monitor improvement.

For the mechanical approach: complete the valve seal replacement with the AGA tool kit and new Elring seals. Immediately after the job use Forte Advanced Formula Motor Flush before the first oil change to clean any debris from the top end. Then refill with fresh oil and add Forte Oil System Protector to protect the new seals from day one.

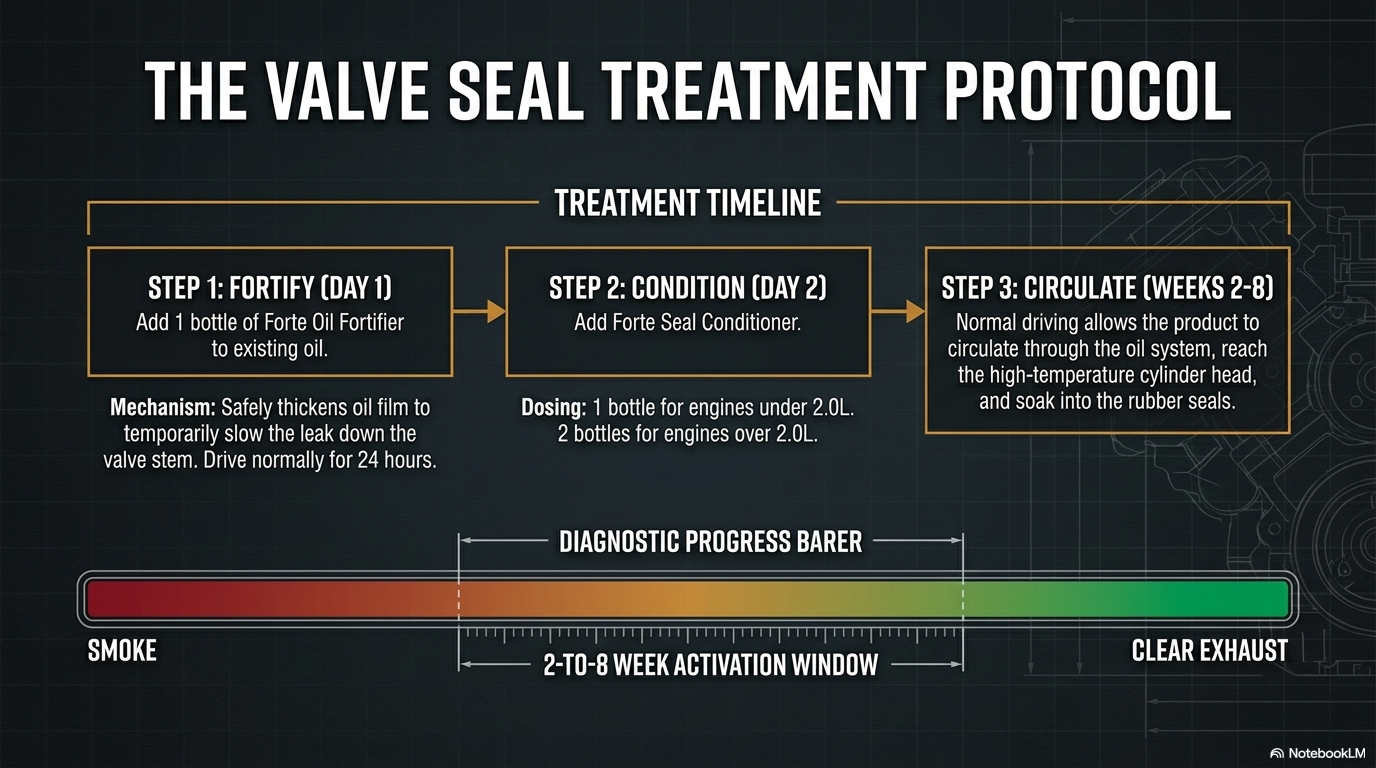

The valve seal treatment protocol — showing the correct approach for both the chemical Forte Seal Conditioner route and the mechanical AGA tool kit route for BMW N62 valve seal replacement
Who is Phil Clements — owner of BMW Tool Rental in Lichfield Staffordshire, who bought his own BMW 650i in 2015, fixed the valve seal problem himself with the AGA tool kit and now rents it to other BMW owners
Who you're dealing with

Phil Clements — BMW Owner, Not Just a Tool Rental Business

In 2015 I bought a BMW 650i and fell in love with it. Then came the blue smoke. I found the AGA tool, fixed my own car, and decided to rent it to others going through the same thing.

Phil bought his own BMW 650i, developed the same valve seal problem, researched the solution himself and fixed his own car with the AGA tool kit before ever renting it to anyone else. He knows this job from personal experience — not just from reading about it.

BMW Tool Rental is a one-person operation. Phil answers every enquiry personally, gives honest advice about whether the tool or Forte Seal Conditioner is the right approach for your situation, and is available throughout your rental if you have questions.

Based in Lichfield, Staffordshire. Phil@bmwtoolrental.co.uk

Pricing

Choose the right option for your situation.

£18.00
Forte Seal Conditioner
The chemical alternative — try this first if your seals are hardened but not physically broken. Around 80% success rate. No tools, no weekends, no disruption.
  • ✓ Add to existing engine oil
  • ✓ Drive normally for 2-8 weeks
  • ✓ No mechanical work required
  • ✓ Free UK delivery
  • ✓ Honest advice on whether it will work for you
Order Forte Seal Conditioner →
£220
AGA Tool Kit Rental — 7 Days
The permanent mechanical fix. Rent the complete AGA BMW N62 valve seal tool kit for 7 days including free UK delivery. Fix it yourself at a fraction of garage cost.
  • ✓ Complete AGA tool kit — everything you need
  • ✓ 7 day rental period
  • ✓ Free UK delivery both ways
  • ✓ Phil available throughout for support
  • ✓ How-to video included
Enquire about rental →
£550
Tool Rental + Complete Elring Seal Kit
The complete package — tool kit rental plus every seal and gasket you need to do the job properly. Elring quality throughout.
  • ✓ Complete AGA tool kit — 7 day rental
  • ✓ 32x Elring valve seals
  • ✓ 2x Elring rocker cover seal kits
  • ✓ 2x cam chain cover oil seals
  • ✓ 2x eccentric sensor seals + 8x spark plug tubes
Enquire about the complete package →
Not sure where to start?
Talk to Phil first.
He'll tell you honestly
what he thinks.

Tell him your symptoms. He'll tell you whether Forte Seal Conditioner is worth trying first or whether you need the tool kit — based on real experience, not a sales pitch.

Get Phil's honest advice →
Common questions

BMW valve seal questions,
answered honestly.

Can you replace BMW N62 valve seals without removing the cylinder heads?
Yes — that's the whole point of the AGA tool kit. It holds each valve closed with compressed air while you change the stem seal with the head still on the engine, so there's no head removal, no head gasket and no engine-out teardown. It turns a multi-thousand-pound garage job into one you can do yourself on the driveway.
What are the symptoms of failing valve stem seals?
The classic sign is blue smoke on cold start and when lifting off the throttle after a motorway run — oil seeps past hardened seals while the engine sits, then burns off on start-up. You may also see higher oil consumption without obvious leaks. A constant blue haze under load points more to piston rings.
How much does it cost to replace BMW valve seals?
At a main dealer or specialist, an N62 valve seal job can run to several thousand pounds because of the labour involved. Renting the AGA tool kit to do it yourself — or trying Forte Seal Conditioner first — costs a fraction of that, which is exactly why Phil set the business up this way.
How do I know if it's valve seals or piston rings?
Valve seal smoke appears on startup and on the overrun (lifting off at speed). Piston ring smoke is more constant — a blue haze under load and acceleration rather than a puff. If you're not sure, describe your symptoms to Phil and he'll give you his honest read before you spend anything.
Should I try Forte Seal Conditioner or rent the tool kit?
If the seals are hardened but not physically broken, try Forte Seal Conditioner first — around 80% of cases improve, with no mechanical work. If that doesn't resolve it, or the seals are cracked, the AGA tool kit is the permanent mechanical fix. Phil will tell you honestly which is right for your symptoms.
How hard is it to replace valve seals with the AGA tool?
It's a proper job, but very achievable for a competent DIYer over a weekend. The kit comes with everything you need, there's a how-to video, and Phil is available throughout for support. Plenty of people who'd never done it before have completed it successfully with a bit of patience.
